API 5L X60 line pipe series

Feb 02, 2024

API 5L X60 line pipe series

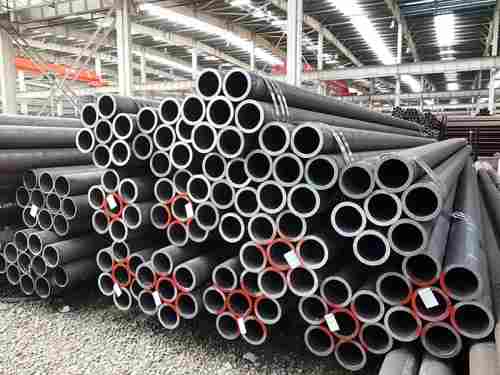

API 5L X60 PSL1/PSL2 line pipe is a carbon steel pipe used for oil and natural gas transportation. These PSL1 and PSL2 API 5L X60 Pipes are available in different forms of Seamless Line Pipe and Welded Line Pipe.

API 5L X60 provided by CSC

CSC's API 5L X60 PSL1/PSL2 line pipe grades offer good machinability and excellent welding properties with or without filler metal. CSC offers other API 5L line pipe in various sizes and shapes according to customer specifications.

API 5L X60 Delivery Condition

PSL	Delivery Condition	Pipe grade
PSL1	As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered	X42, X46, X52, X56, X60, X65, X70
PSL 2	Quenched and tempered	BQ, X42Q, X46Q, X56Q, X60Q, X65Q, X70Q, X80Q, X90Q, X100Q
	Thermomechanical rolled or thermomechanical formed	BM, X42M, X46M, X56M, X60M, X65M, X70M, X80M

API 5L X60 Chemical Composition for PSL 1 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and product analyses a,g
	C	Mn	P	S	V	Nb	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
X60	0.28 e	1.40 e	0.3	0.3	f	f	f
Welded Pipe
X60	0.26 e	1.40 e	0.3	0.3	f	f	f
f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%,

Chemical Composition for API 5L X60 PSL 2 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and product analyses																		Carbon Equiv a
	C		Si		Mn		P		S		V		Nb		Ti		Other		CE IIW		CE Pcm
	max b		max		max b		max		max		max		max		max		Other		max		max
Seamless and Welded Pipe
X60Q	0.18f		0.45f		1.70f		0.025		0.015		g		g		g		h,l		0.043		0.25
Welded Pipe
X60M		0.12f		0.45f		1.60f		0.025		0.015		g		g		g		h,l		0.043	0.25
g. Unless otherwise agreed, Nb + V + Ti ≤ 0.15%, h. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 0.50% Cr ≤ 0.50% and MO ≤ 0.50%, l. For all PSL 2 pipe grades except those grades with footnotes j noted, the following applies. Unless otherwise agreed no intentional addition of B is permitted and residual B ≤ 0.001% .

Mechanical properties API 5L X60 Line Pipe

Pipe Grade	Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 1			Seam of Welded Pipe
	Yield Strength a	Tensile Strength a	Elongation	Tensile Strength b
	Rt0,5 PSI Min	Rm PSI Min	(in 2in Af % min)	Rm PSI Min
X60	60,200	75,400	c	75,400
c. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:
Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– For circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch)
