U Tubo

Tipo de tubería:Tubo doblado de acero en forma de U Tubo de acero inoxidable/tubo doblado en U

Dimensiones (mm) OD: 12,7-76,2 mm (1/2"-3")

Grosor de la pared: 0,5-5,16 mm (0,02"-0,203")

Longitud de longitud: 15,24 m (50 ')

Longitud total: 32,00 m (105') 32,00 m (105')

Estándares:

Tubos en U de acero inoxidable:
ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688 201, 202, 304, 304H, 304L, 309, 310, 316, 316L, 321, etc.
Tubos de acero al carbono con curva en U:
ASTM A671 CC60, CC70, ASTM A671 CB60, CB65, CB70, CC60, CC65, CC70
Tubos de acero aleado con curva en U:
DIN 17175, ASTM A369, ASME SA369, gr. FP91, gr. FP92

Materiales: T5, T11, T12, T22, T9, T91, TP304/304L, TP304H, TP316/316L, TP347/347H,
TP316Ti, TP321/321H, TP310S; TP304, TP304L, TP316, TP316L; UNS S31803/32205,
UNS S32750; Monel400,UNS N06600,625,Incoloy800/800H,825...

Enviar correo electrónico Consulta

Introducción Specification Proceso de producción Nuestra fábrica Empaquetado Consulta

Introducción

Tipo de tubería:Tubo doblado de acero en forma de U Tubo de acero inoxidable/tubo doblado en U

Detalles de productos

Tubos doblados en U disponibles
productos	Dimensiones (mm) O.D.	W.T.	Length	Standards	Materials	Remarks
Tubos doblados en U para Intercambiador de calor	12.7-76.2mm (1/2"-3")	0.5-5.16mm (0.02"-0.203")	Leg Length: 15.24m(50') Total length: 32.00m(105')	ASTM/ASME A/SA213	T5,T11,T12,T22, T9,T91, TP304/304L, TP304H, TP316/316L, TP347/347H, TP316Ti, TP321/321H, TP310S	Seamless ferritic and Austenitic Stainless Steel U-bent Tubes
				ASTM/ASME A/SA249	TP304,TP304L, TP316,TP316L...	Welded Stainless Steel U-bent Tubes
				ASTM/ASME A/SA789	UNS S31803/32205, UNS S32750...	Duplex Stainless Steel U-bent Tubes
				ASTM/ASME A/SA163	Monel400, UNS N06600,625, Incoloy800/800H, 825...	Ferritic and Martensitic Stainless Steel Seamless U-bent Tubes
sin costuras y (Soldado) Re-estirado de acero inoxidable Calentador de agua de alimentación Tubos doblados en U	12.7-25.4mm (1/2"-1")	0.7-3.05mm (0.028"-0.12")	Leg Length: 15.24m(50') Total length: 32.00m(105')	ASTM/ASME A/SA688/213 ASTM/ASME A/SA803	TP304,TP304L, TP304LN, TP316,TP316L. TP316LN,TP439...	Feed Water Heater Tubes for Thermal Power Station

Specification

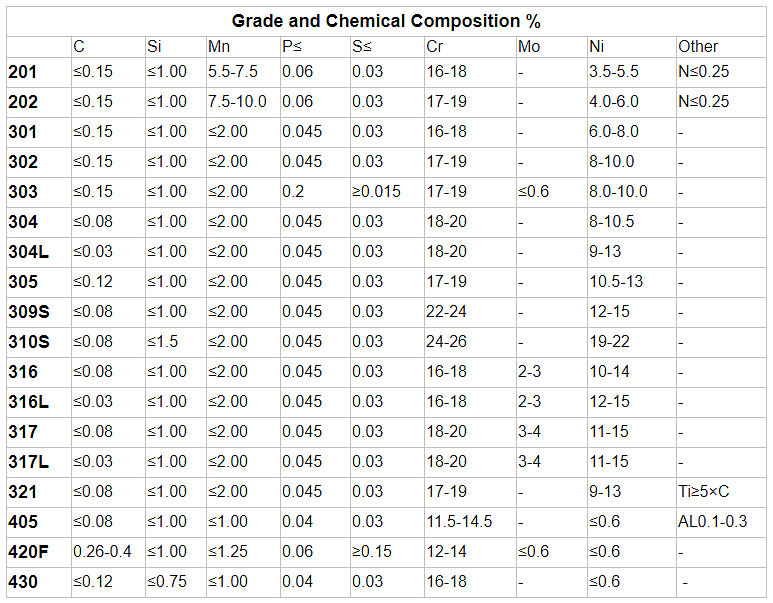

Chemical Composition

Elem-Ent	Grade	TP304	TP304L	TP304LN	TP316	TP316L	TP316LN	TP XM-29	TP 304N	TP 316N
%	UNS	S30400	S30403	S30453	S31600	S31603	S31653	S24000	S30451	S31651
C, Max		0.08	0.035	0.035	0.08	0.035	0.035	0.060	0.08	0.08
Mn, Max		2.00	2.00	2.00	2.00	2.00	2.00	11.50-14.50	2.00	2.00
Ph, Max		0.040	0.040	0.040	0.040	0.040	0.040	0.060	0.040	0.040
S, Max		0.030	0.030	0.030	0.030	0.030	0.030	0.030	0.030	0.030
Si,,Max		0.75	0.75	0.75	0.75	0.75	0.75	1.00	0.75	0.75
Ni		8.00-11.00	8.00-13.00	8.00-13.00	10.00-14.00	10.00-15.00	10.00-15.00	2.25-3.75	8.00-1.00	10.00-14.00
Cr		18.00-20.00	18.00-20.00	18.00-20.00	16.00-18.00	16.00-18.00	16.00-18.00	17.00-19.00	18.00-20.00	16.00-18.00
Mo		-	-	-	2.00-3.00	2.00-3.00	2.00-3.00	-	-	2.00-3.00
N		-	-	0.10-0.16	-	-	0.10-0.16	0.20-0.40	0.10-0.16	0.10-0.16

Dimensional Tolerance

ASTM A688 U bend tube tolerance of outside should be accordance with specification A1016/M, bent portion of U tubes for R =2 X D or greater, tolerance shall deviate from the nominal diameter prior to bending by more than 10 %, if less than 2 X D is speciﬁed, tolerances could be greater, minimum wall thickness shall not exceed +20 % − 0, average wall thickness are 10 % of the nominal wall thickness, bent area wall tolerance shall not be less than value determined by the equation: 4RT/(4R+D).
